COSINA

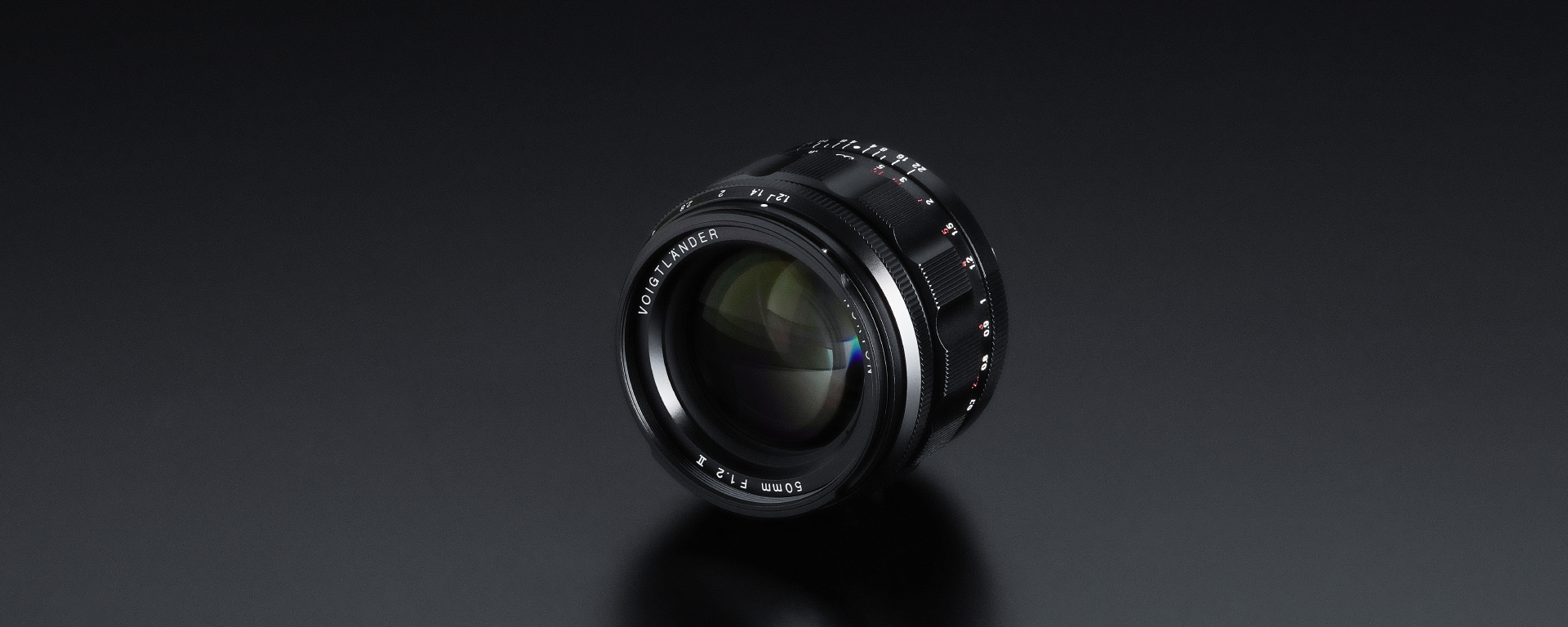

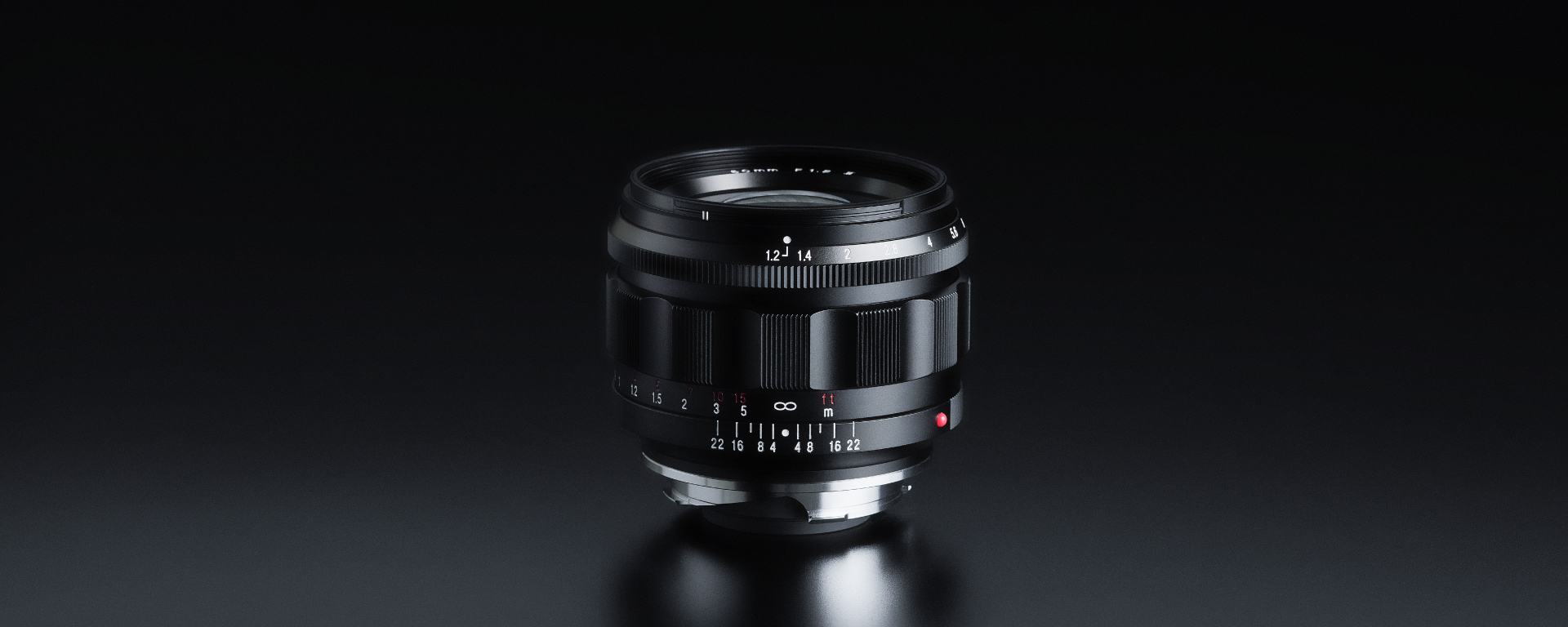

NOKTON 50mm F1.2 Aspherical II

Very blurred bokeh with great handling

Features

With specifications offering the true character of a high-speed standard lens, this 50mm F1.2 lens, which is a traditional standard large aperture lens historically much loved by professional photographers, has been designed utilizing the latest technology. As well as utilizing two elements with aspherical surfaces on both sides to provide confidence-inspiring performance from maximum aperture, the lens allows you to enjoy very blurred bokeh. With its compact form considering its large maximum aperture, this lens is ideal for use on cameras with optical viewfinders and it provides effortless operability.

Main Features

Outstanding optical performance, 4 aspherical surfaces utilized

With an 8 element optical configuration featuring 2 elements with aspherical surfaces on both sides, this lens achieves both a high image quality standard and a large maximum aperture.

12-blade aperture diaphragm for beautiful bokeh

The aperture diaphragm is configured with 12 blades to make the aperture opening as circular as possible. This means the out-of-focus areas of images are drawn naturally and point light sources etc. are drawn as soft round bokeh rather than as polygonal shapes.

Compact style

Despite its large maximum aperture, the short length of the lens ensures it only protrudes slightly into the rangefinder window. Weighting only 322 grams (without accessories), the lens provides nimble handling.

Bayonet type hood (sold separately)

A metal bayonet-type hood with slits to reduce vignetting when mounted on a rangefinder camera and which can be reversed-mounted when carried. Two types of hoods are available: the compact LH-14 and the longer, vintage-style LH-15.

Manual focus for reliable focusing

Employs a very precisely machined and adjusted all metal helicoid unit lubricated with high quality grease to realize smooth focusing operation with just the right amount of torque. This enables very precise focusing.

Bayonet type VM mount

Uses the VM-mount lens mount compatible with Leica M-mount. Not only can this lens be used on rangefinder-coupled cameras, but design-wise it also balances very nicely when mounted on mirrorless digital cameras with a mount adapter.

Installed with a focus-coupling system

The high-precision rangefinder coupling mechanism enables precise focusing in focus critical situations such as when shooting at or close to maximum aperture.

Imaging circle that covers full frame format

The lens features a generous imaging circle that covers the 35 mm full frame format. Furthermore, its size is extremely compact compared to interchangeable lenses for single-lens reflex cameras.

Specifications

Lens diagram

Focal Length
50mm
Aperture Ratio
1 : 1.2
Minimum Aperture
F22
Lens Construction
6 groups 8 elements
Angle of View
47.5°
Aperture Blade
12
Minimum Focus
0.7m
Rangefinder Coupling
∞~0.7m (It depends on the camera)
Diameter × Length
φ63.3×50.4mm
Filter size
φ52mm
Weight
322g
Hood
LH-14 (Optional hood
LH-15 (Optional hood)

EAN

Ean Code
EAN 4002451009669

Accessories

  • LH-14 (Option)
  • LH-15 (Option)

Examples

  • NOKTON 50mm F1.2 Aspherical II PHOTO BY Hideaki Omura
  • NOKTON 50mm F1.2 Aspherical II PHOTO BY Hideaki Omura
  • NOKTON 50mm F1.2 Aspherical II PHOTO BY Hideaki Omura
  • NOKTON 50mm F1.2 Aspherical II PHOTO BY Hideaki Omura
  • NOKTON 50mm F1.2 Aspherical II PHOTO BY Hideaki Omura
Voigtländer NOKTON 50mm F1.2 Aspherical II PHOTO BY Hideaki Omura
Voigtländer NOKTON 50mm F1.2 Aspherical II PHOTO BY Hideaki Omura
Voigtländer NOKTON 50mm F1.2 Aspherical II PHOTO BY Hideaki Omura
Voigtländer NOKTON 50mm F1.2 Aspherical II PHOTO BY Hideaki Omura
Voigtländer NOKTON 50mm F1.2 Aspherical II PHOTO BY Hideaki Omura
