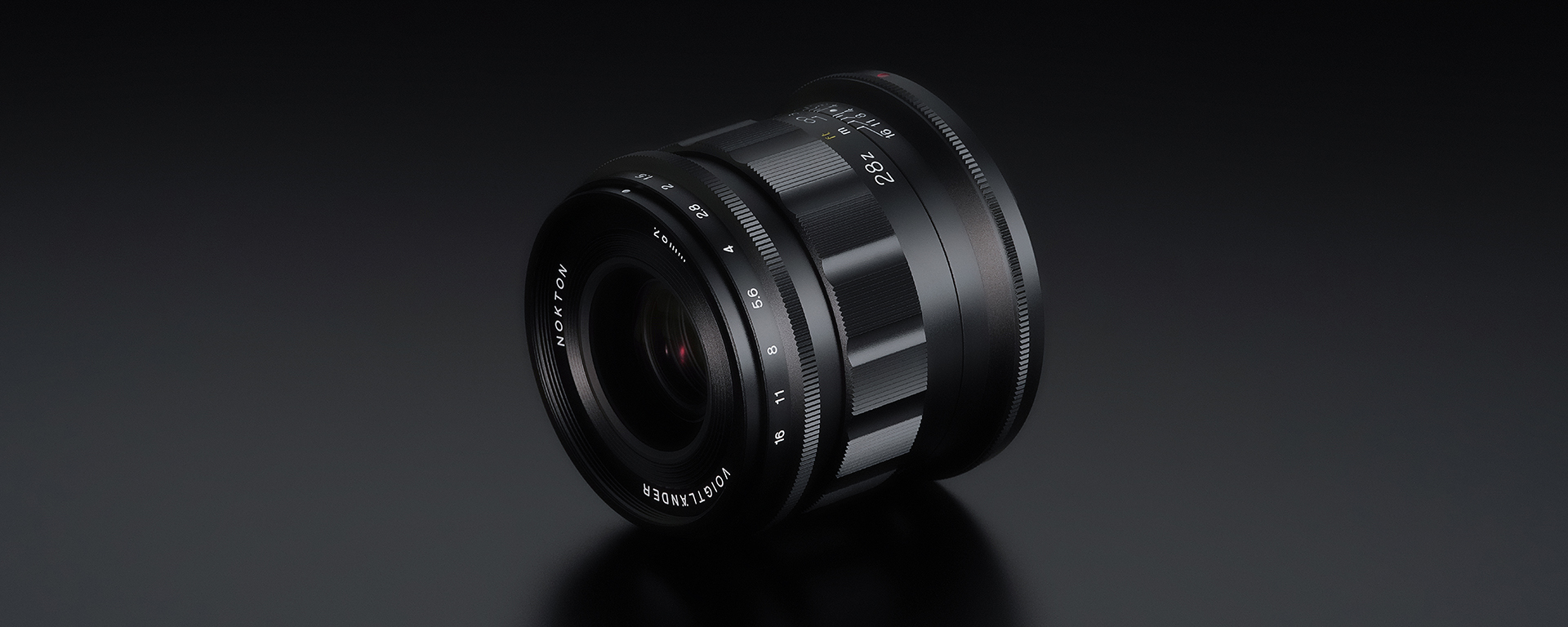

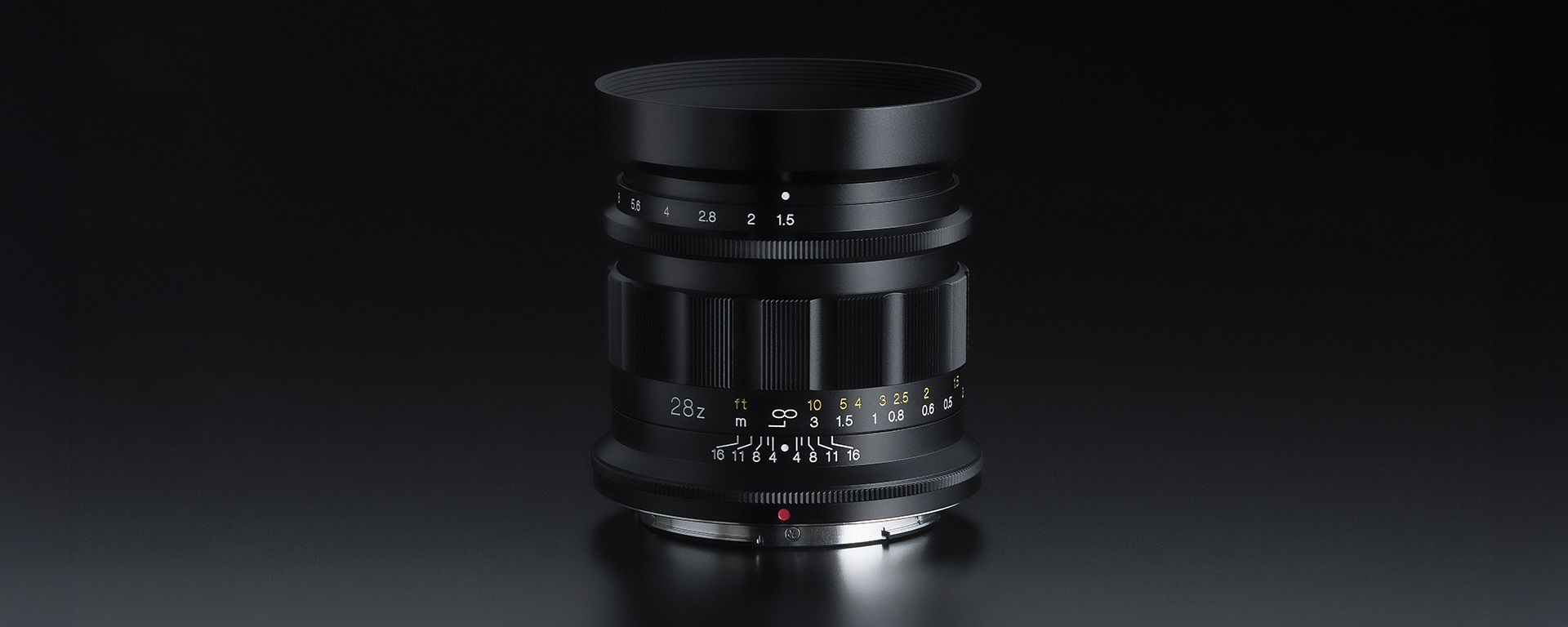

NOKTON 28mm F1.5 Aspherical
Features
The NOKTON 28mm F1.5 Aspherical Z Mount is a high speed wide-angle lens for full-frame mirrorless Nikon FX format cameras with Nikon Z mount.
It combines compactness and high performance with a large aperture of F1.5.
Two aspherical elements provide excellent performance wide open.
Main Features
Designed exclusively for the Nikon Z mount
Optics optimized for the image sensors of mirrorless cameras with the Nikon Z-mount are implemented. The lens has a full-frame image circle and can be used with both full-frame (Nikon FX format) and APS-C size (Nikon DX format) mirrorless cameras.
Information communication with the body by electronic contacts
This lens is equipped with electronic contacts and realizes communications between the lens and the body. In addition to Exif information and in-body image stabilization (3 axes), by combining with a body compatible with communications and the latest firmware*1, three types of focusing support functions
[1] focusing by color changing of the focus point frame
[2] peaking function focusing and
[3] focusing with the enlargement button) are supported.
Minimum focus distance of 0.28 meters
The minimum image capturing distance from the subject to the imaging surface is 28cm. This lens expands the possibilities for imaging utilizing the strong perspective characteristic of wide angle lenses.
Manual focus for reliable focus operation
Adopting a full-metal helicoid unit processed and adjusted with high precision and high-quality grease that produces an appropriate torque, focusing with a smooth operation feeling is realized. It enables fine focus adjustment.
Beautiful bokeh-effect by 12 aperture blades
12 aperture blades are used to make the aperture opening as circular as possible. This means the out-of-focus areas of images are drawn naturally, and the point light source will be round bokeh rather than as polygonal shapes.
*1 Please use the latest firmware version of the camera body; bodies released before 2020 (Z5, Z6I, Z6II, Z7,Z7II, Z50) may not perform as well with older firmware or some functions may be limited.Please check the body's instruction manual for information on checking the firmware of the body and obtaining the latest firmware.
*2 This product is developed and manufactured under a license agreement with Nikon Corporation.
Specifications
Lens diagram
- Focal Length
- 28mm
- Aperture Ratio
- 1 : 1.5
- Minimum Aperture
- F16
- Lens Construction
- 8 groups 10 elements
- Angle of View
- 74.6°
- Aperture Blade
- 12 elements
- Minumum Focus
- 0.28m
- Maximum reproduction ratio
- 1: 6.87
- Diameter×Length
- φ67.6×57.0mm
- Filter size
- φ52mm
- Weight
- 360g
- Hood
- Screw-in hood includes
- Aperture ring
- Available (Manual Setting)
- Electrical Contact
- Available *1
- Exif Data
- Available *1
- Focusing support function 1
- Color changing of the focus point frame
- Focusing support function 2
- Peaking function focusing
- Focusing support function 3
- Magnification button on camera body
- In-body image stabilization
- Possible(only on camera with in-body stabilization)
- Corresponding sensor size
- Full frame
EAN
- Ean Code
- EAN 4002451 008532
Examples
-
NOKTON 28mm F1.5 Aspherical PHOTO BY Jima -
NOKTON 28mm F1.5 Aspherical PHOTO BY Jima -
NOKTON 28mm F1.5 Aspherical PHOTO BY Jima -
NOKTON 28mm F1.5 Aspherical PHOTO BY Jima -
NOKTON 28mm F1.5 Aspherical PHOTO BY Jima -
NOKTON 28mm F1.5 Aspherical PHOTO BY Jima
