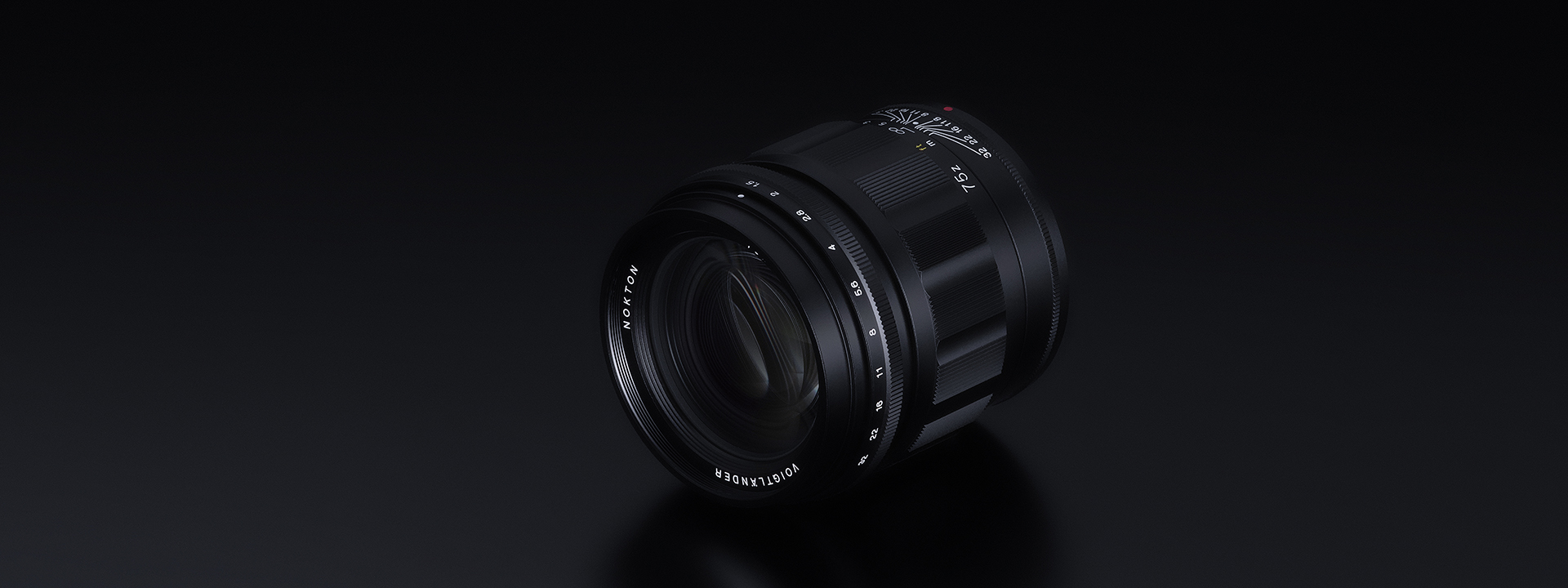

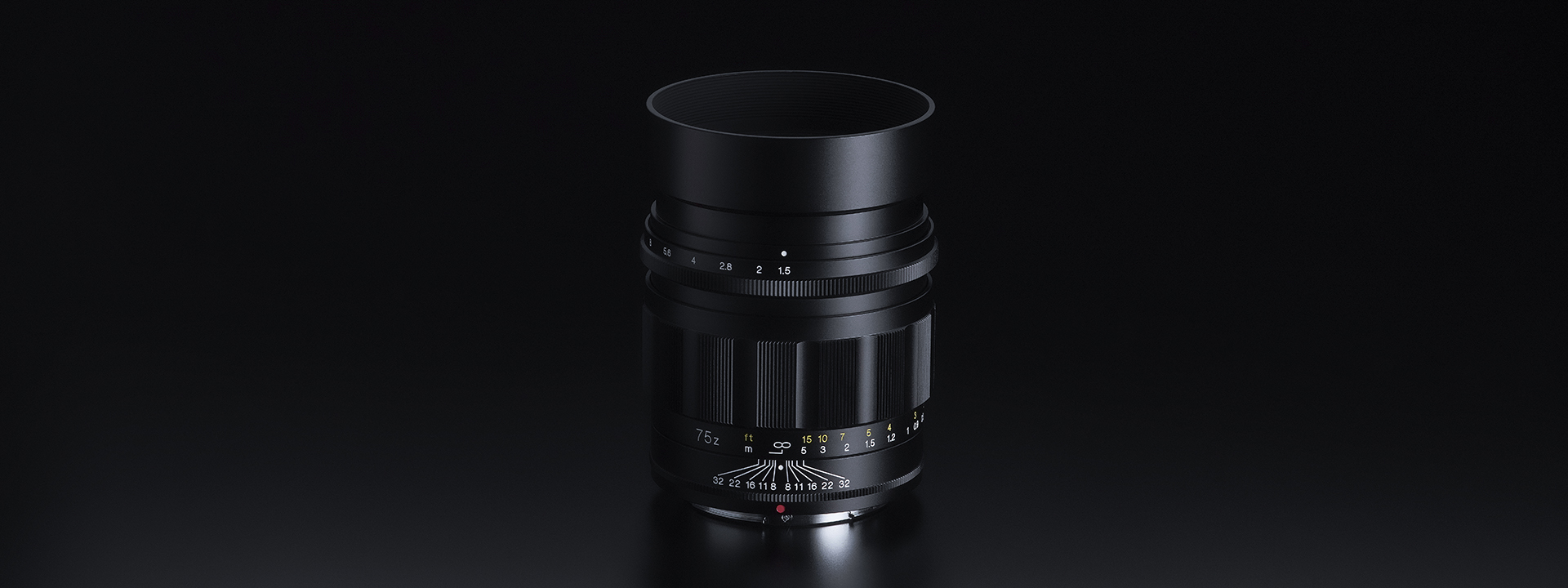

NOKTON 75mm F1.5 Aspherical
Features
The NOKTON 75mm F1.5 Aspherical Z-mount is a large aperture manual focus medium telephoto lens optimized for full-frame (FX format) mirror-less camera exclusively for Nikon Z mount.
Providing both compactness and high performance despite the large aperture of F1.5. You can enjoy excellent imaging performance from the maximum aperture which is achieved by using aspherical lenses.
Main Features
Designed exclusively for the Nikon Z mount
The lens is optimized for the image sensors of mirrorless cameras with the Nikon Z-mount. The lens has a full-frame image circle and can be used with both full-frame (Nikon FX format) and APS-C size (Nikon DX format) mirrorless cameras.
Data communication through electronic contacts
This lens is equipped with electronic contacts and realizes communications between the lens and the body. In addition to Exif information and in-body image stabilization (3 axes), the lens has three types of focusing support functions by combining with a body compatible with communications and the latest firmware*1.
[1] focusing by color changing of the focus point frame.
[2] peaking function focusing.
[3] focusing with the enlargement button) are supported.
Manual focus lens for accurate focus operation
The smooth focusing is realized which enables fine focus adjustment by adopting a full-metal helicoid unit with high precision and high-quality grease that produces an appropriate torque.
Beautiful bokeh-effect by 12 aperture blades
12 aperture blades are used to make the aperture opening as circular as possible. This means the out-of-focus areas of images are drawn naturally, and the point light source will be round bokeh rather than as polygonal shapes.
Minimum aperture can be set to F32.
Despite a large-aperture lens with a maximum aperture of F1.5, the minimum aperture can be set as low as F32. At the maximum aperture of F1.5, you can enjoy a large bokeh effect, while at the minimum aperture of F32, you can obtain a deep focus.
*1 List of supported models and firmware
Please use the latest firmware because the performance may not be as good as the firmware listed or some of the functions may be limited.
Corresponding body and firmware *2
- Z 9
- v1.0 or later
- Z 8
- v1.0 or later
- Z 7II
- v1.3 or later
- Z 6II
- v1.3 or later
- Z 5
- v1.2 or later
- Z f
- v1.0 or later
- Z 50
- v2.2 or later
- Z 30
- v1.0 or later
- Z fc
- v1.0 or later
- Z 7
- v3.4 or later
- Z 6
- v3.4 or later
*2 If the Firmware is less than the ones listed above, the performance may not be exhibited or some functions may be limited, so please use the latest Firmware. Please check the instruction manual of the body for checking the Firmware of your body and obtaining the latest Firmware.
*This product is developed and manufactured under a license agreement with Nikon Corporation.
Specifications
Lens diagram
- Focal Length
- 75mm
- Aperture Ratio
- 1 : 1.5
- Minimum Aperture
- F32
- Lens Construction
- 6 groups 7 elements
- Angle of View
- 32.6°
- Aperture Blade
- 12 elements
- Minumum Focus
- 0.5m
- Maximum reproduction ratio
- 1: 4.8
- Diameter×Length
- φ74.0×75.9mm
- Filter size
- φ62mm
- Weight
- 530g
- Hood
- Screw-in hood includes
- Aperture ring
- Available (Manual Setting)
- Electrical Contact
- Available *1
- Exif Data
- Available *1 *2
- Focusing support function 1
- Color changing of the focus point frame
- Focusing support function 2
- Peaking function focusing
- Focusing support function 3
- Magnification button on camera body
- In-body image stabilization
- Possible(only on camera with in-body stabilization)
- Corresponding sensor size
- Full frame
EAN
- Ean Code
- EAN 4002451 007382
Examples
-
NOKTON 75mm F1.5 Aspherical PHOTO BY fotoshin -
NOKTON 75mm F1.5 Aspherical PHOTO BY fotoshin -
NOKTON 75mm F1.5 Aspherical PHOTO BY fotoshin -
NOKTON 75mm F1.5 Aspherical PHOTO BY fotoshin -
NOKTON 75mm F1.5 Aspherical PHOTO BY fotoshin
